Jc-an5075 horn test antenna

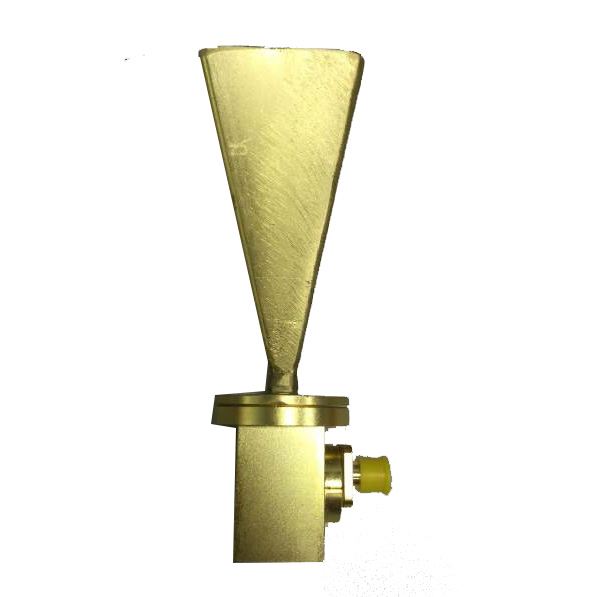

1、 Jc-an5075 horn antenna product introduction:

Jc-an5075 50ghz-75ghz horn antenna is a broadband antenna with a frequency coverage of 50ghz-75ghz, stable standing wave, a standing wave ratio of less than 2, compact size and excellent workmanship. It is widely used in millimeter wave testing.

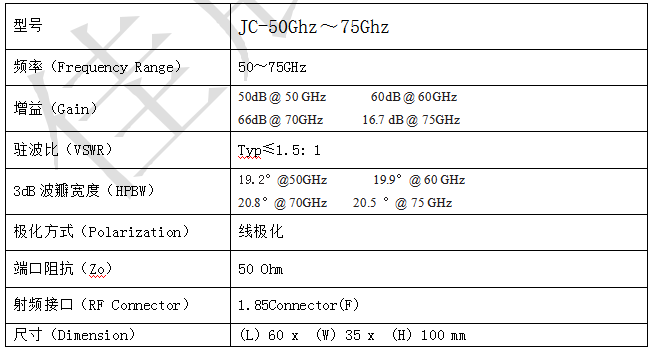

2、 Jc-an5075 horn antenna specification

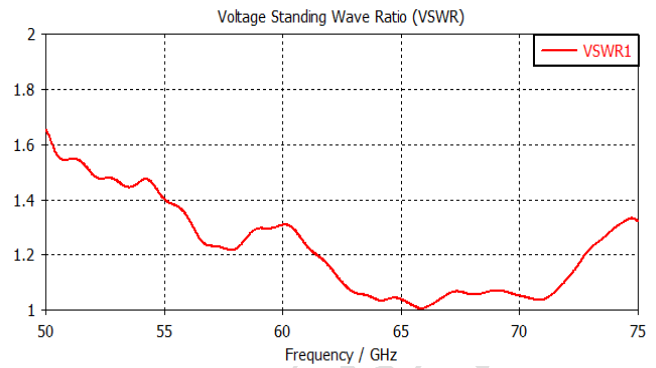

3、 Standing wave test (VSWR) results of jc-an5075 horn antenna

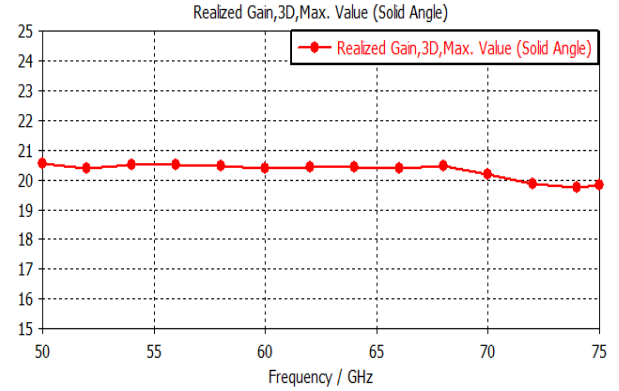

三、 喇叭天线增益测试（VSWR）结果
