Jc-3018 broadband coupler antenna

发布时间:2020-03-26 15:43:43浏览次数:

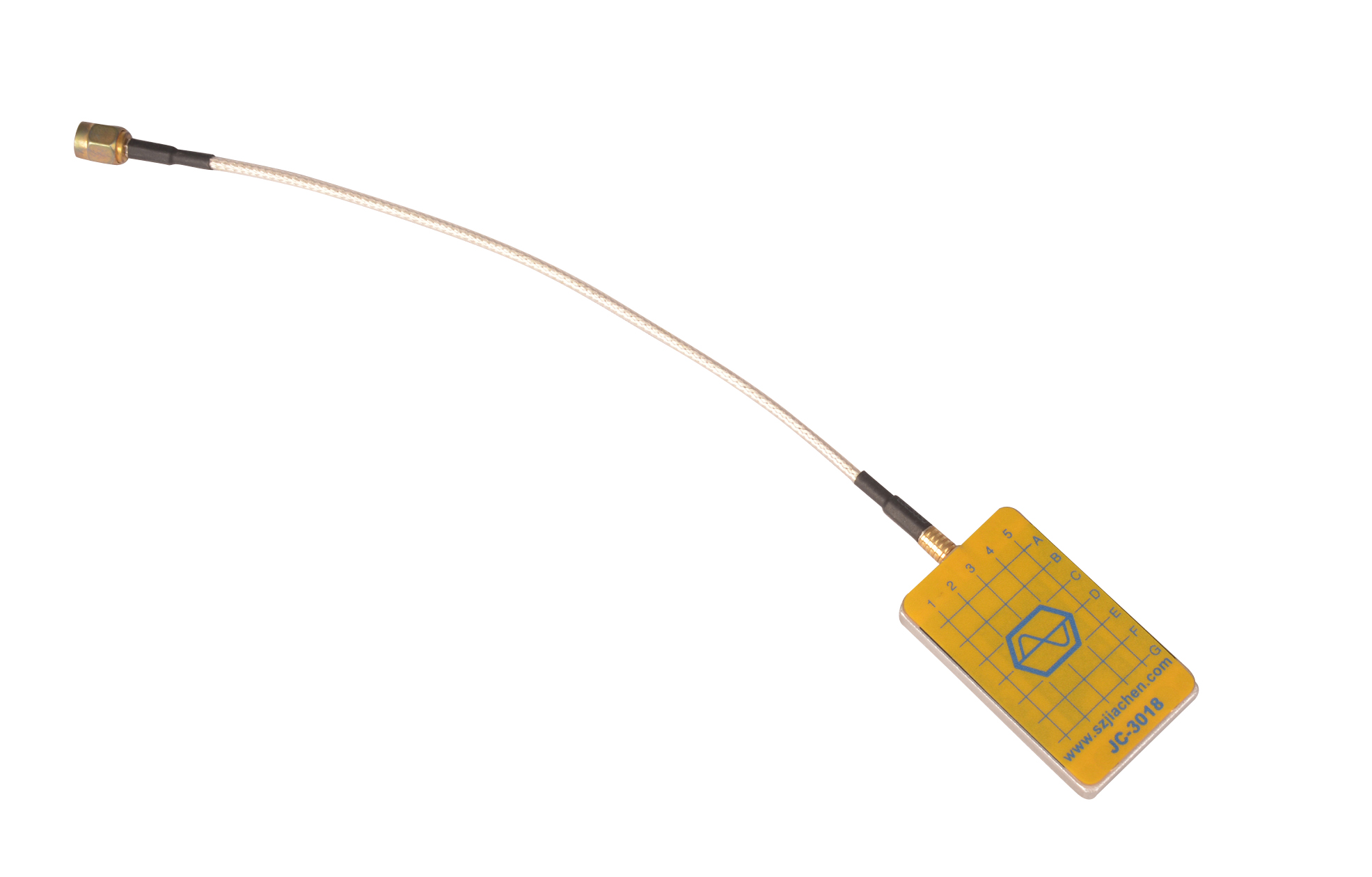

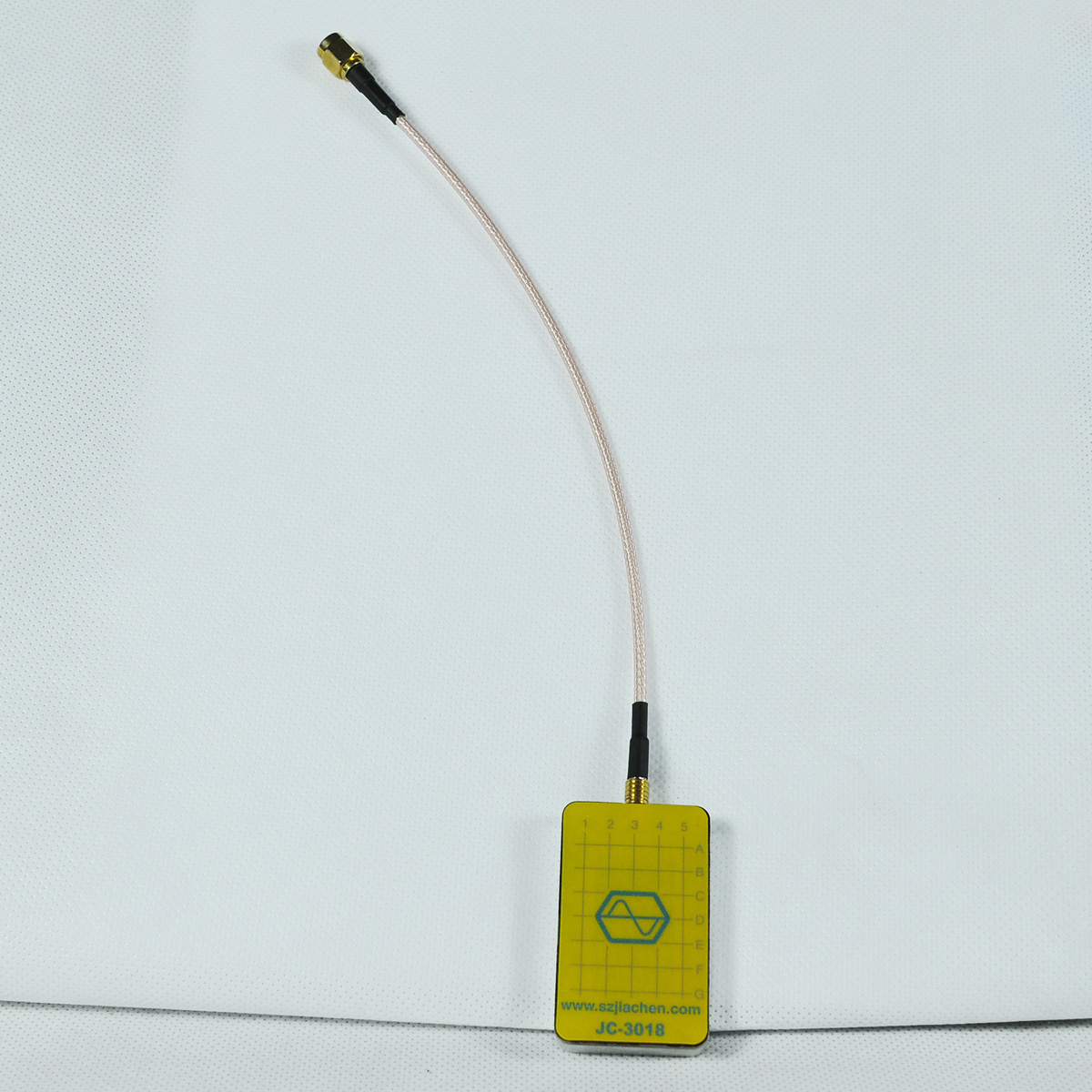

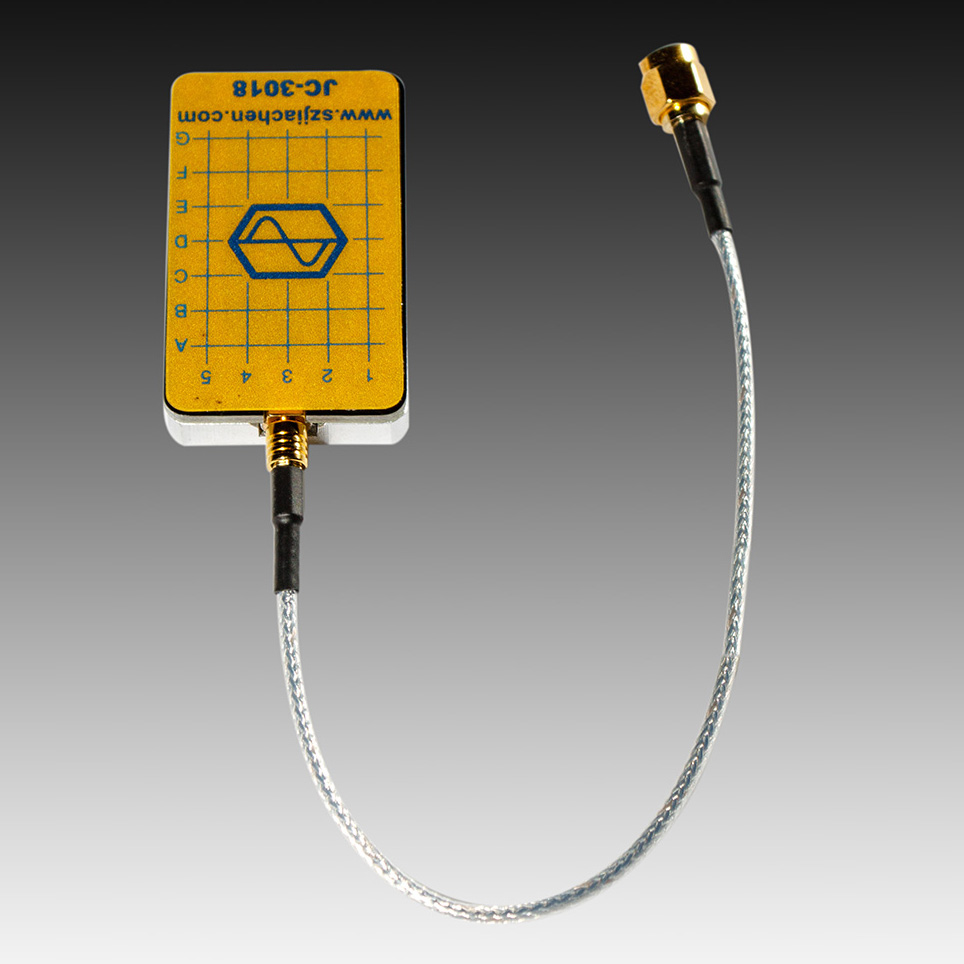

1、 Jc-3018 broadband coupler antenna product introduction


A broadband coupling antenna with frequency coverage of 100mhz-3.2ghz, stable standing wave, standing wave ratio less than 1.5, compact size, excellent workmanship, can be applied to mobile phone, Bluetooth, wireless card, GPS, WiFi, wireless module coupling test.


2、 Broadband coupler antenna specification



频  率(Frequency Range)

100 ~ 3200 MHz

射频接口(RF Connector)

SMA母(M)

尺  寸(Dimension)

115(W) x 115(D) x 15(H) mm

重  量(Weight)

160 g

端口阻抗(Terminal)

50 ohm

驻波比(VSWR)

1 : 1.5 (Typ 1.3)

极  化(Polarization)

垂直极化




3、 Broadband coupler antenna standing wave test data (VSWR):
