Jc-db2013 manual sliding door type shielded Loudspeaker box

Jc-db2013 manual sliding door shield box product introduction

Jc-db2013 is a manual shielded speaker box, which has large working size and good testing effect. It is widely used in the detection of wireless network card, router, Bluetooth, mobile phone and other communication RF equipment. The shield and sound insulation box is made of sheet metal, which has good sound insulation and tight structure; it is simple and labor-saving in electrical control operation; the superior design and exquisite technology of the product ensure the quality of the product, and it is an economic and practical shield and sound insulation box at present.

Main functions and application scope of jc-db2013 manual sliding door type shielding box

Wireless communication test

EMI test, EMS test

Coupling test (coupling antenna is equipped separately)

RF function test

Performance index of jc-db2013 manual sliding door shield box

Materials: sheet metal

Appearance color: beige

Working frequency: 0.8ghz-6ghz

Shielding effect: 0.8ghz-6ghz ≥ 70dB

Working dimension: (L) 600X (W) 600X (H) 600mm ± 5mm

Box size: (L) 700X (W) 700X (H) 700mm ± 5mm

Appearance dimension: (L) 810x (W) 780X (H) 710mm ± 5mm

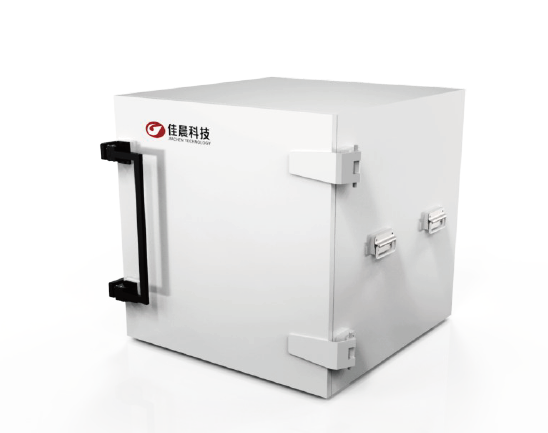

Appearance picture of jc-db2013 manual sliding door shield box
