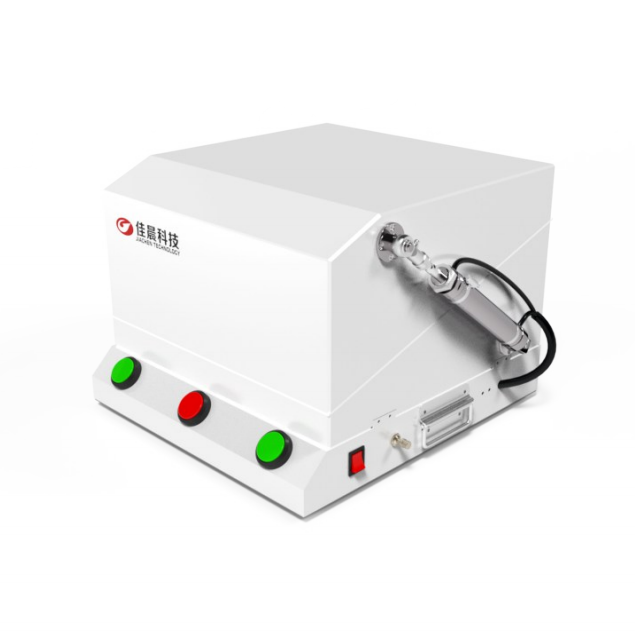

Jc-pz3056 pneumatic shell shielding box

Jc-pz3056 pneumatic shell shield box product introduction

Shielding box is a kind of shielding body with various shapes made of conductive or magnetic conducting materials, which limits the electromagnetic capacity within a certain space range and is used to suppress radiation interference. It also deals with the conduction and radiation, so as to provide a non-interference test environment for the tested wireless communication equipment.

Main functions and application scope of jc-pz3056 pneumatic shell shielding box

Wireless communication test

EMI test, EMS test

Coupling test (coupling antenna is equipped separately)

RF function test

Performance index of jc-pz3056 pneumatic shell shielding box

Shielding box material: cast aluminum (30 + 15)

Appearance color: white

Opening and closing angle: 35 °

Communication port: RS232 (DB9)

Working frequency: 0.8ghz-5.8ghz

Shielding effect: 0.8ghz-5.8ghz > 70dB

Working dimension: (L) 380x (W) 390x (H) 190mm ± 5mm

Box size: (L) 430x (W) 430x (H) 258mm ± 5mm

Appearance dimension: (L) 560x (W) 530x (H) 345mm ± 5mm

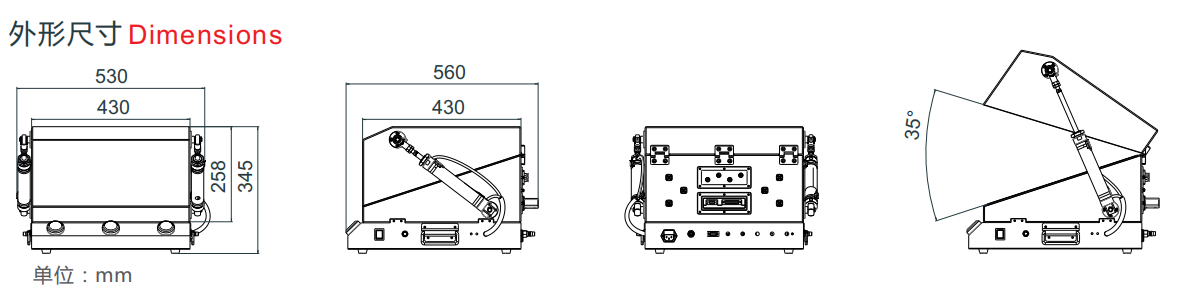

Appearance dimension of jc-pz3056 pneumatic shell type shielding box
