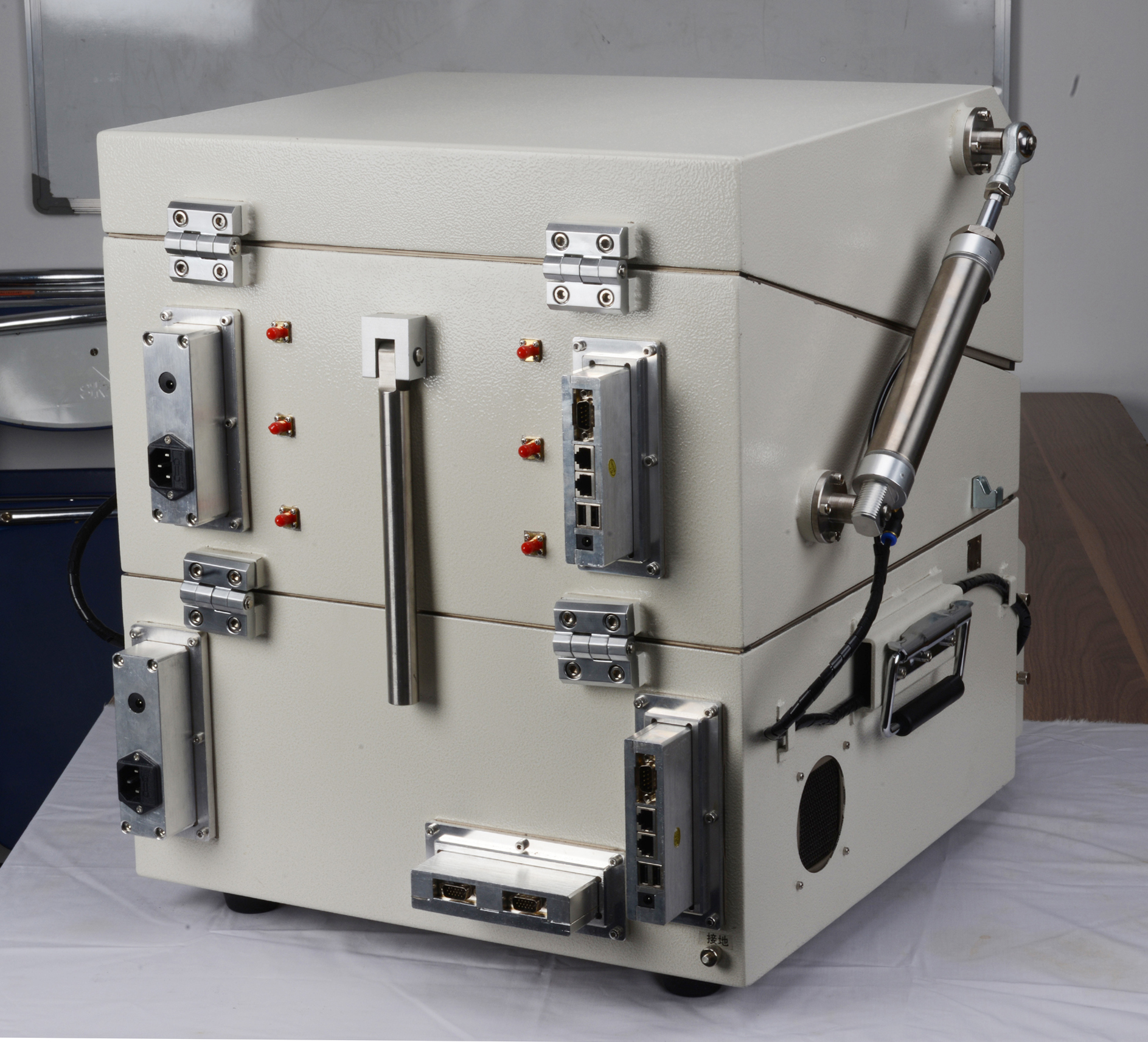

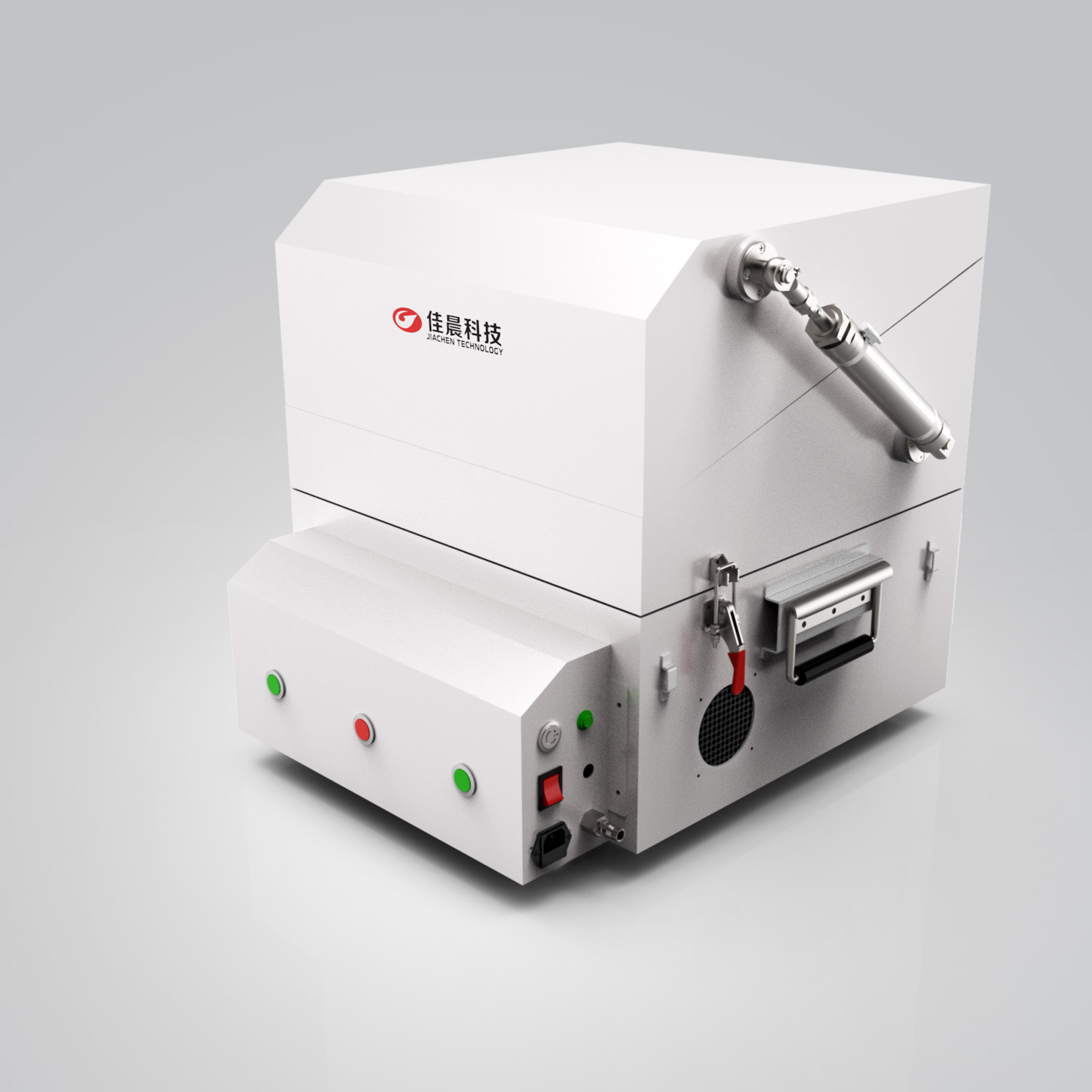

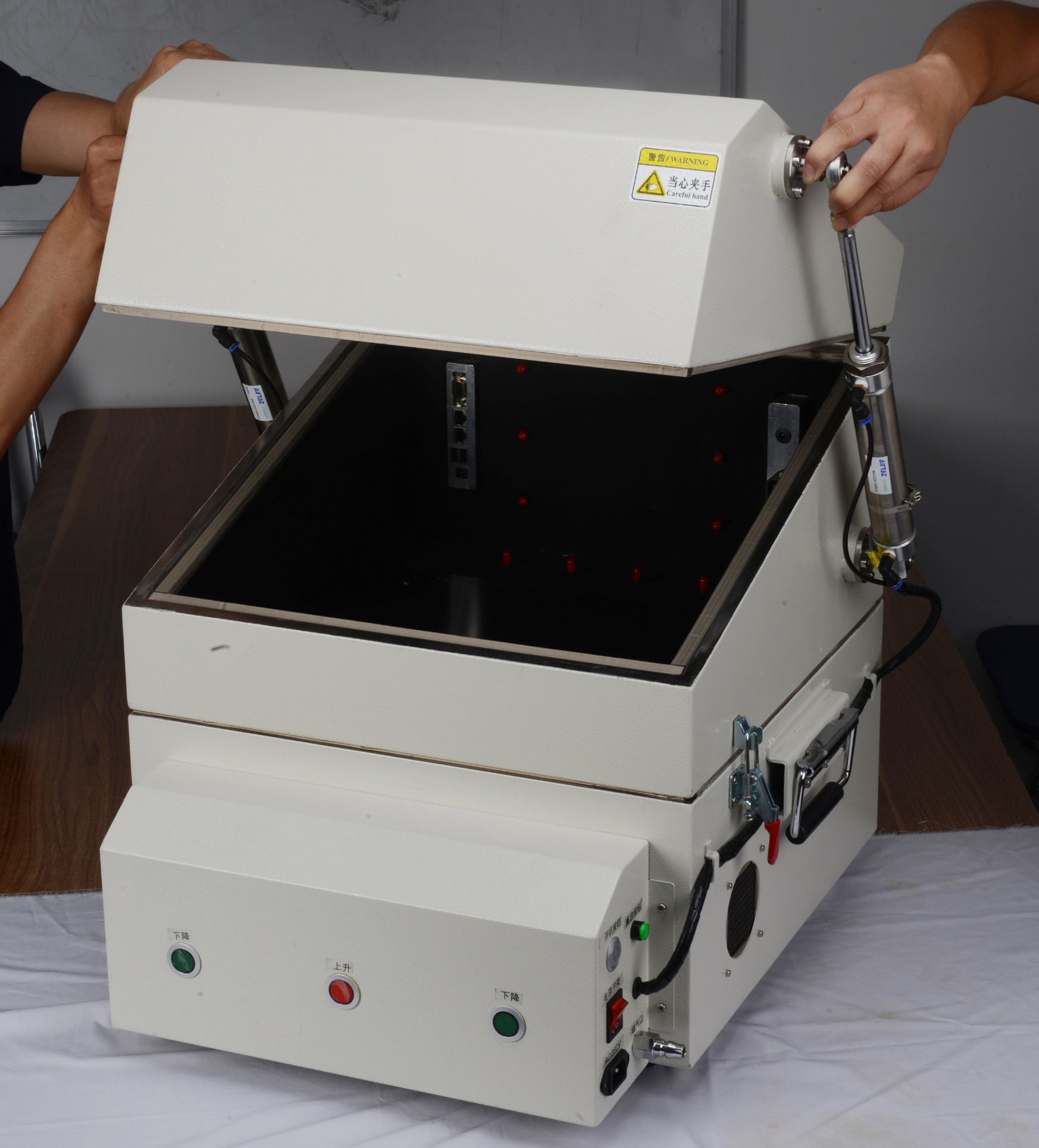

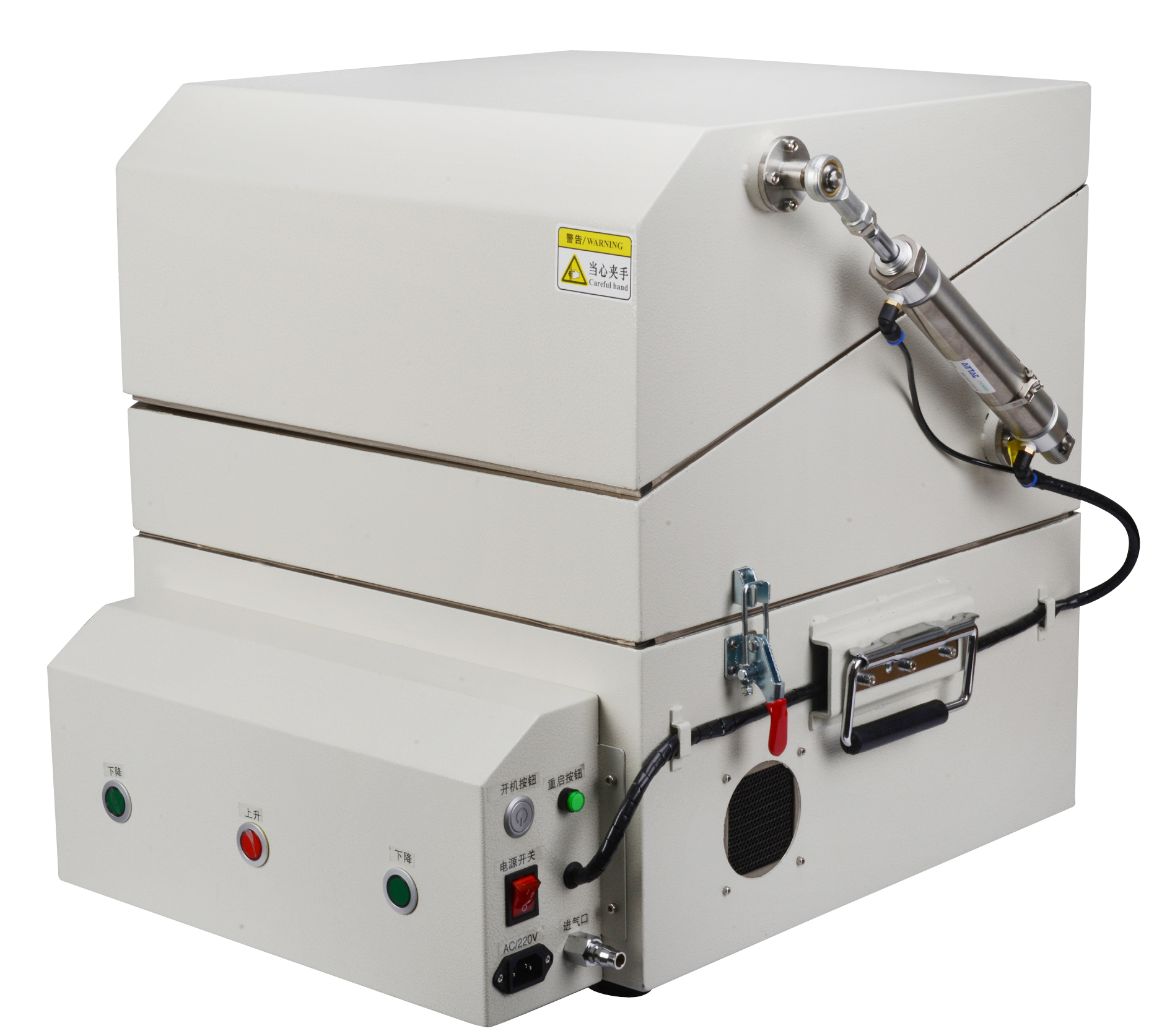

Jc-pb3017 shell type automatic shielding box

Product introduction of jc-pb3017 shell type shielding box

Shielding box is a kind of shielding body with various shapes made of conductive or magnetic conducting materials, which limits the electromagnetic capacity within a certain space range and is used to suppress radiation interference. It also deals with the conduction and radiation, so as to provide a non-interference test environment for the tested wireless communication equipment.

Main functions and application scope of jc-pb3017 shell type shielding box

Wireless communication test

EMI test, EMS test

Coupling test (coupling antenna is equipped separately)

RF function test

Performance index of jc-pb3017 shell type shielding box

Material: sheet metal (10 + 2 cotton)

Appearance color: beige

Working frequency: 0.8ghz-5.8ghz

Shielding effect: 0.8ghz-5.8ghz ≥ 70dB

Working dimension (I): (L) 355x (W) 400X (H) 230mm ± 5mm

Working dimension (lower): (L) 340x (W) 370x (H) 175mm ± 5mm

Box size: (L) 460x (W) 460x (H) 287mm ± 5mm

Appearance dimension: (L) 640x (W) 580x (H) 525mm ± 5mm

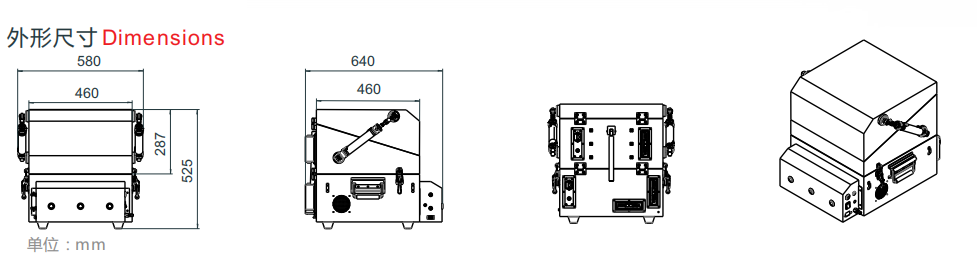

Jc-pb3017 shell type shielding box appearance dimension
