Jc-pb2022 sliding door manual shielding box

Jc-pb2022 sliding door shield box product introduction

Shielding box is a kind of shielding body with various shapes made of conductive or magnetic conducting materials, which limits the electromagnetic capacity within a certain space range and is used to suppress radiation interference. It also deals with the conduction and radiation, so as to provide a non-interference test environment for the tested wireless communication equipment.

Main functions and application scope of jc-pb2022 sliding door shield box

Wireless communication test

EMI test, EMS test

Coupling test (coupling antenna is equipped separately)

RF function test

Performance index of jc-pb2022 sliding door shield box

Material: sheet metal (30 tips)

Appearance color: beige

Working frequency: 0.8ghz-5.8ghz

Shielding effect: 0.8ghz-5.8ghz ≥ 70dB

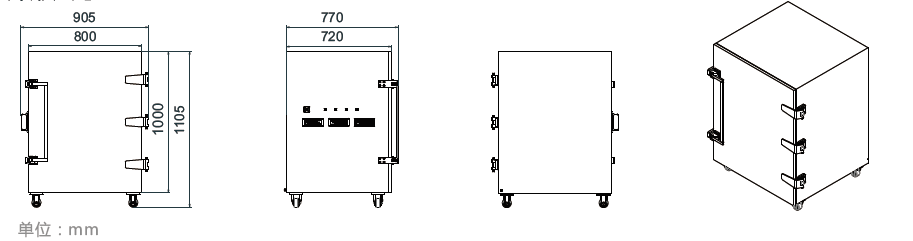

Working dimension: (L) 650x (W) 680X (H) 880mm ± 5mm

Box size: (L) 720x (W) 800X (H) 1000mm ± 5mm

Appearance dimension: (L) 770x (W) 905x (H) 1105mm ± 5mm

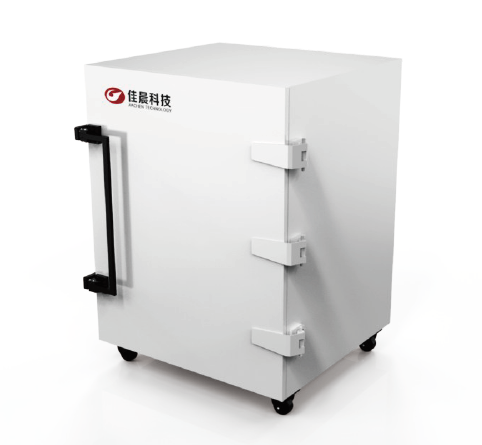

Appearance picture of jc-pb2022 sliding door shield box
