Pb3022 automatic shell shielding box

Working principle of jc-pb3022 wireless product automatic shell shielding box

The full-automatic shielding box is made of conductive or magnetic materials, which is mainly suitable for testing of wireless communication products, such as mobile phones, wireless network cards, wireless data cards, wireless routers, WiFi and other related products. Features: one is to limit the radiation electromagnetic energy inside the equipment to exceed a certain area, that is, to absorb the internal interference signal; the other is to prevent the external radiation electromagnetic energy from entering a certain area, that is, to shield the external interference signal.

The speaker is to test the product in a certain sound environment and get the noise of the test product. For example, when the external noise is 70 decibels, the product is tested in an environment of 30 decibels. Main functions and application scope: provide sound insulation test environment for product noise test, also known as shielding box

Main functions and application scope of jc-pb3022 shell type automatic shielding box

Wireless communication test

EMI testing,

EMS test

Coupling test (coupling antenna is equipped separately)

RF function test

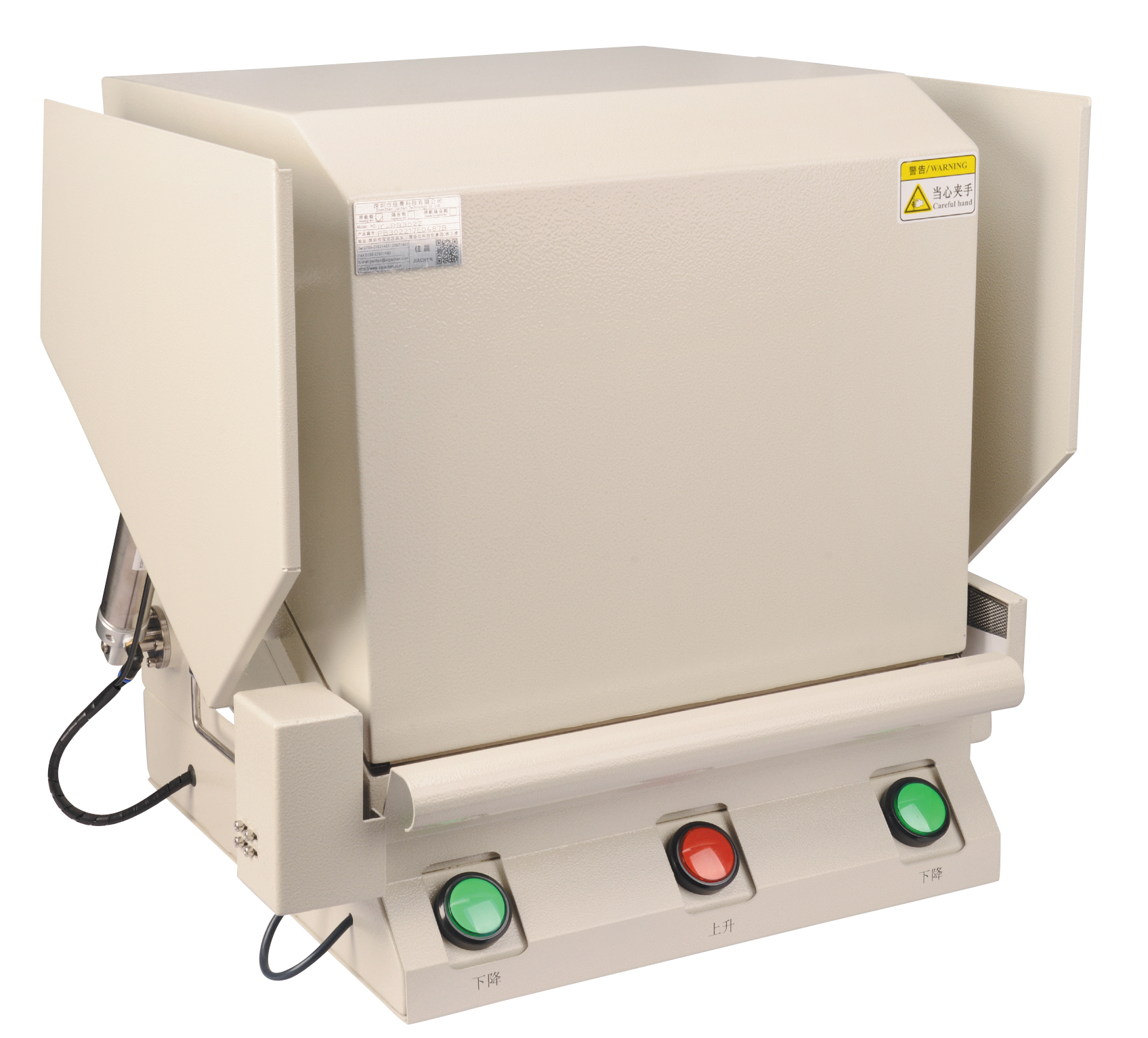

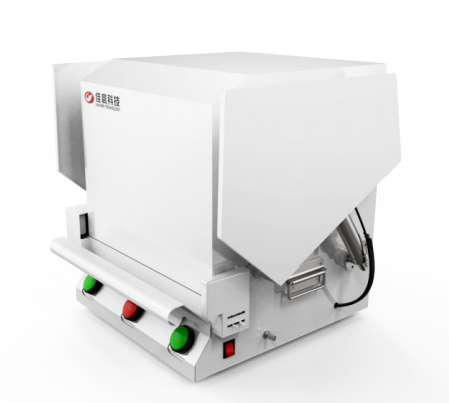

Shell type automatic product model: jc-pb33444 (original model pb3022) basic parameters

◆ product category: wireless test automatic shielding box

◆ control mode: steam driven

◆ box structure: shell type automatic shielding box

◆ box material: Aluminum

◆ box process: Casting

◆ appearance color: beige

◆ scope of application: EMI / EMS test / coupling test / RF

◆ working frequency: 0.8ghz-6ghz shielding effect: 0.8ghz-6ghz ≥ 70dB

◆ working dimension: (L) 400X (W) 400X (H) 400mm ± 5mm

◆ box size: (L) 430x (W) 430x (H) 440mm ± 5mm

◆ appearance dimension: (L) 550x515x (H) 525mm ± 5mm

◆ product net weight: 45kg

◆ frequency band and efficiency: 0.8ghz-6.0ghz ≥ 70dB

◆ opening radian: 45 °
