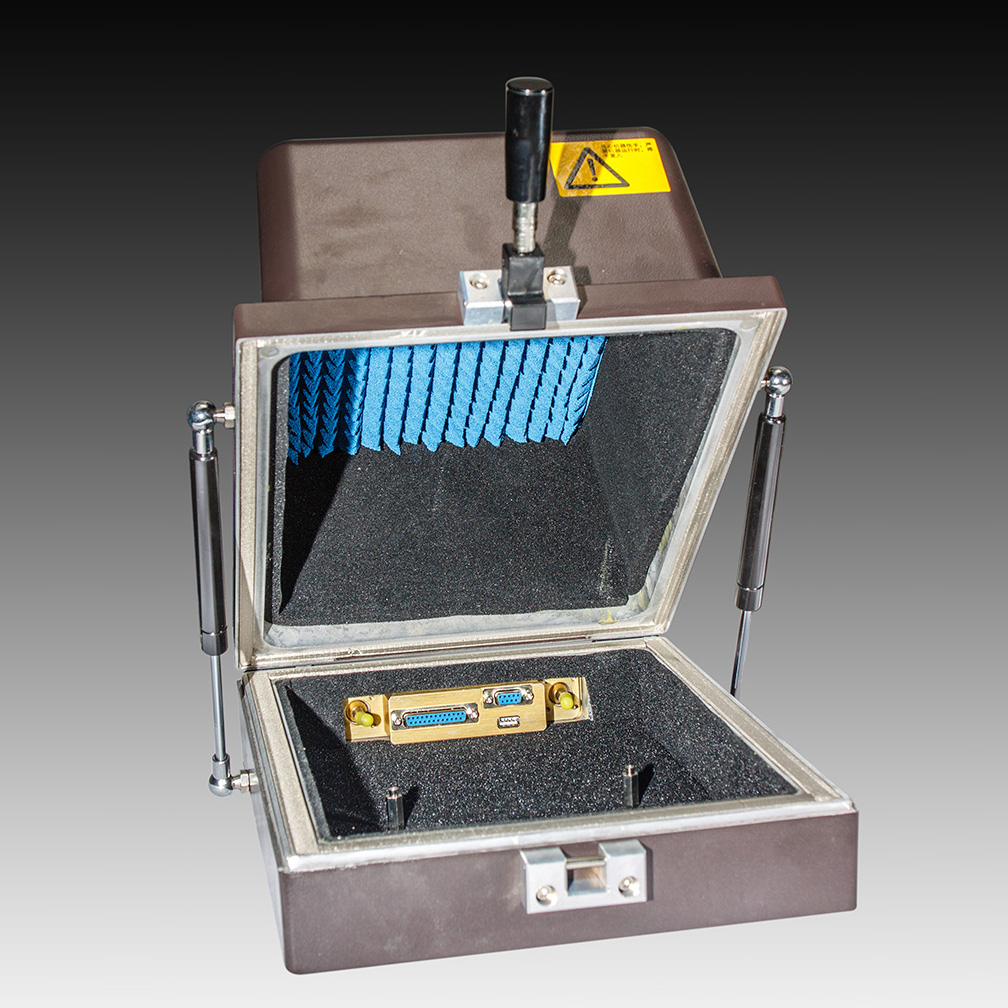

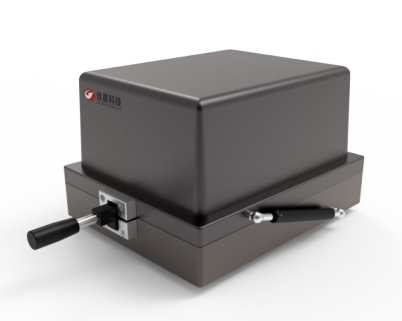

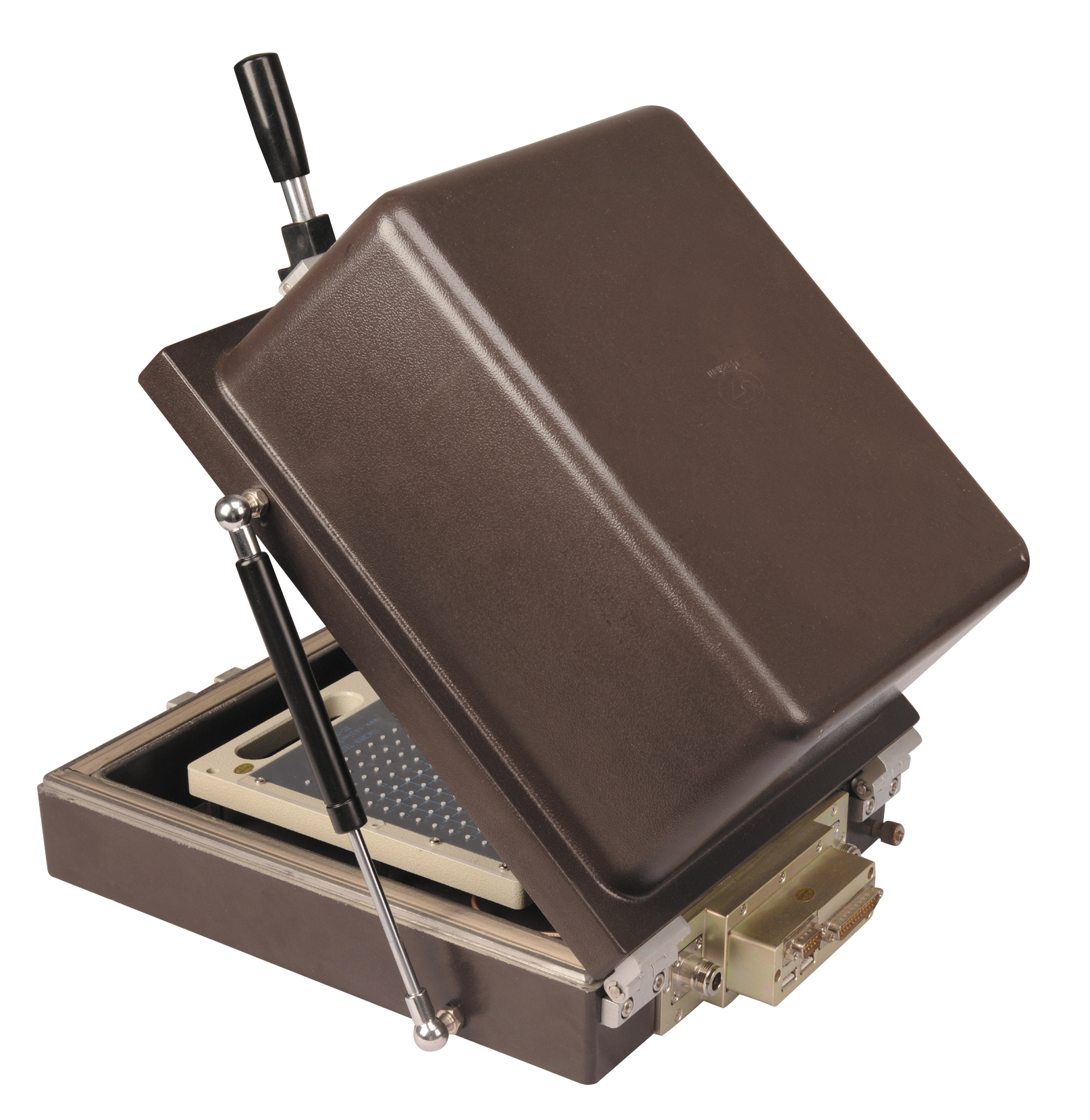

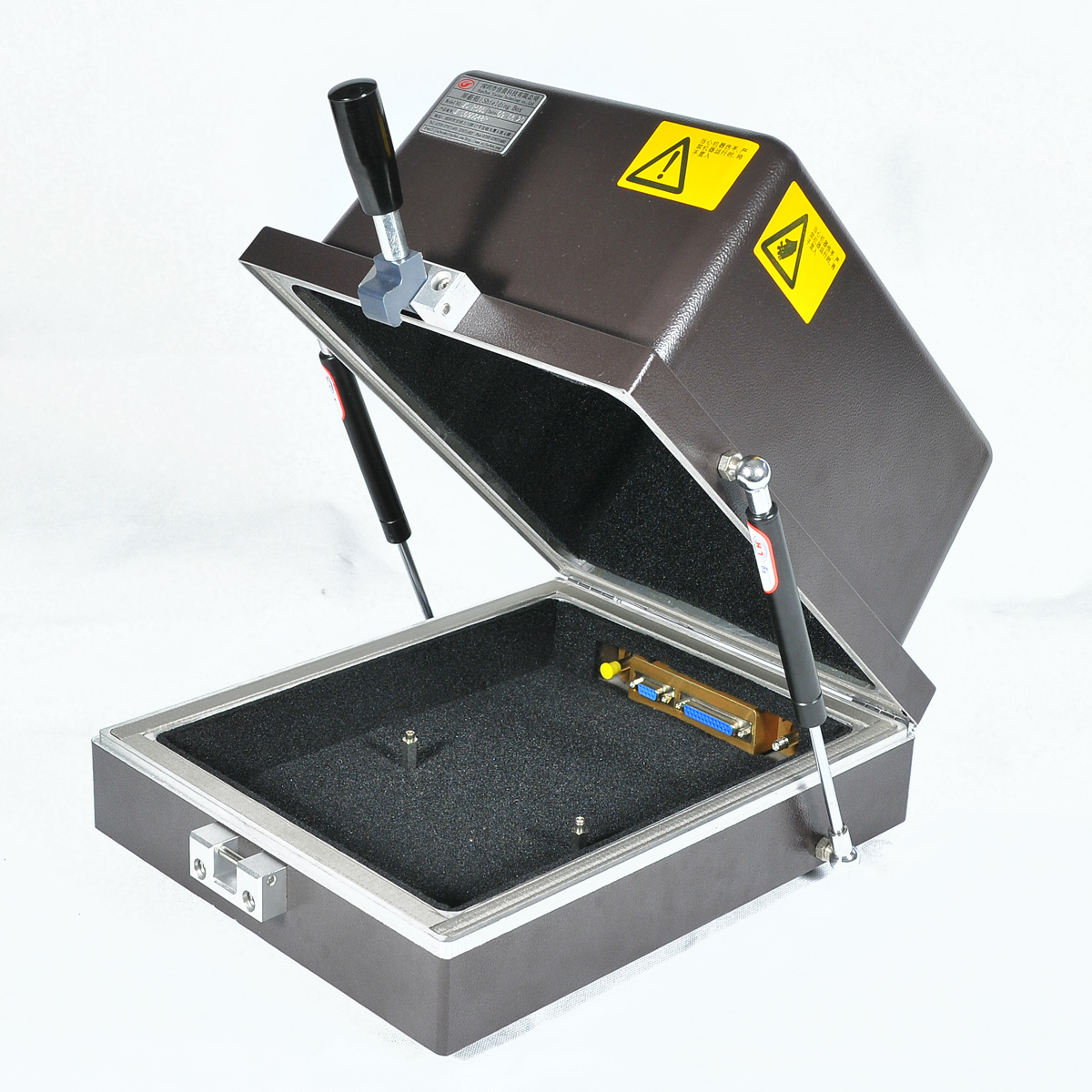

Pz5051 shell type manual shielding box

Principle of pz5051 shell type manual shielding box

The shielding box is made of conductive or magnetic materials, which is mainly suitable for testing of wireless communication products, such as mobile phones, wireless network cards, wireless data cards, wireless routers, WiFi and other related products. Features: one is to limit the radiation electromagnetic energy inside the equipment to exceed a certain area, that is, to absorb the internal interference signal; the other is to prevent the external radiation electromagnetic energy from entering a certain area, that is, to shield the external interference signal.

Main functions and application scope of pz5051 shielding box

Wireless communication test

EMI test

RF function test

Coupling test (coupling antenna is equipped separately)

Introduction of series parameters of manual shielding box

Product model: jc-pz31322 (old model: jc-pz5051)

◆ product category: manual shielding box

◆ control mode: Manual

◆ box structure: shell type

◆ box material: Aluminum

◆ box process: Casting

◆ appearance color: Coffee

◆ scope of application: EMI / EMS test / coupling test / RF function test

◆ working size: 260x205x185mm

◆ box size: 334x274x204mm

◆ boundary dimension: 500x320x218mm

◆ product net weight: 8.5Kg

◆ frequency band and efficiency: 0.8ghz-3.0ghz ≥ 70dB

                                                     3.0GHz-6.0GHz≧60dB

◆ opening radian: 45 °
