Pf0008 microwave darkroom / shielding room

发布时间:2020-03-26 11:47:41浏览次数:

Pf0008 microwave darkroom / shielding room / full anechoic room


Pf0008 is a manual sound insulation room with large internal space. It has multi-layer sound insulation, sound-absorbing material production and test environment noise barrier and sound insulation equipment. Living in a complex society of electromagnetic environment, it is easy to be interfered by many kinds of external signals and the leakage of internal signals. For some precise instruments and equipment, their use is affected by various interference of external signals, and the results are not accurate. Shielding room is a kind of shielding body with various shapes made of conductive or magnetic conducting materials, which limits the electromagnetic ability in a certain space and is used to suppress radiation interference. It also deals with the conduction and radiation, so as to provide a non-interference test environment for the tested wireless communication equipment. Now, although there are shielding devices in each room, they can't shield signals very well. When people enter or leave the door, the external signals can still interfere with the indoor devices. A kind of shielding room is proposed.


Pf0008 function and scope of application of microwave darkroom / shielding room / sound insulation room


Provide sound insulation test environment for product noise inspection, shield noise and provide equipment for production noise reduction


Pf0008 basic parameters of microwave darkroom / shielding room / sound insulation room


Material: sheet metal + sound insulation and absorption material

Appearance color: beige

Sound insulation effect: outdoor noise ≤ 75db, indoor noise ≤ 40dB

Working dimension: (L) 1500x (W) 900X (H) 1810mm ± 5mm

Box size: (L) 1800x (W) 1500x (H) 1940mm ± 5mm

Appearance dimension: (L) 1925x (W) 1505x (H) 2435mm ± 5mm

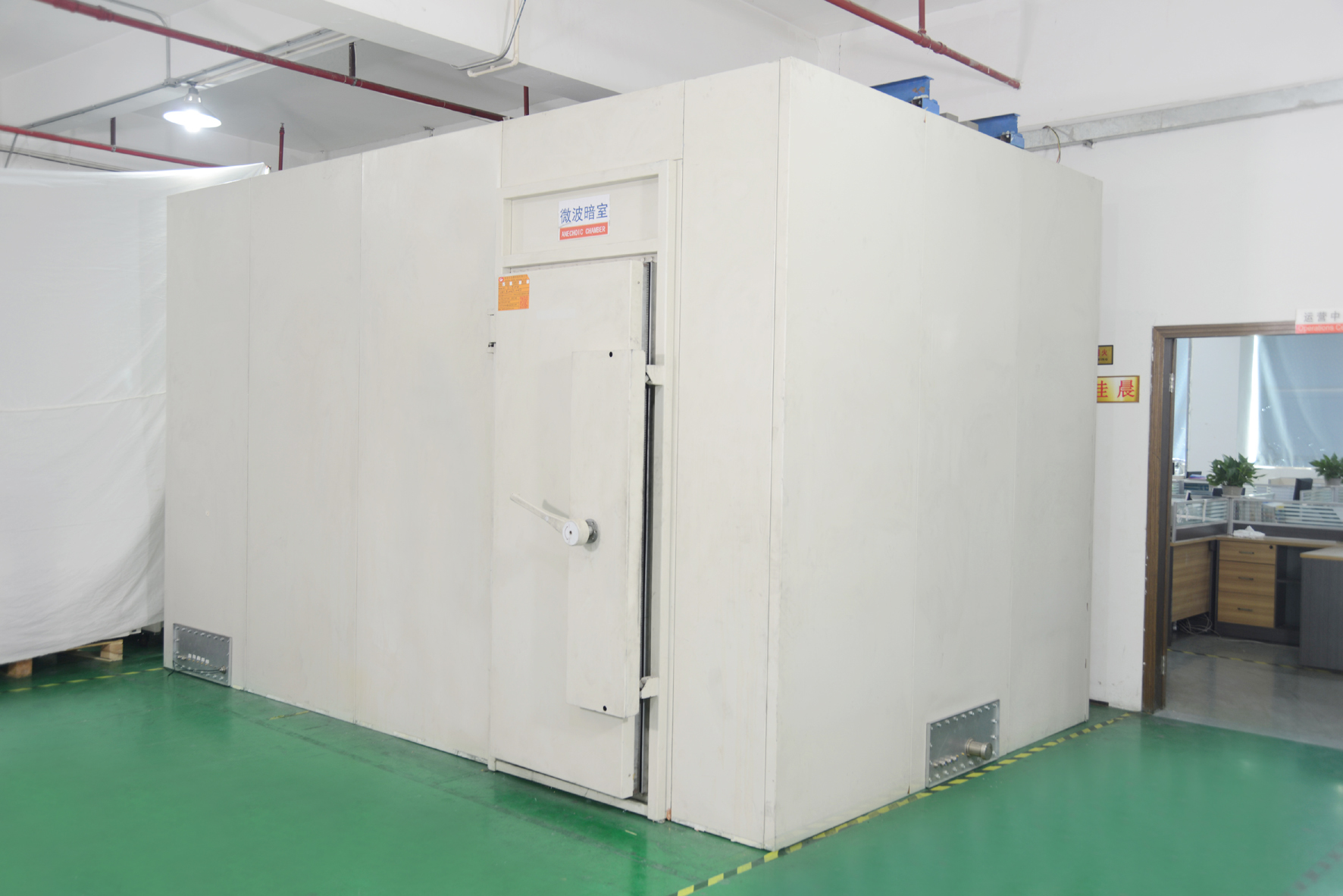

Pf0008 microwave darkroom / shielding room / appearance diagram

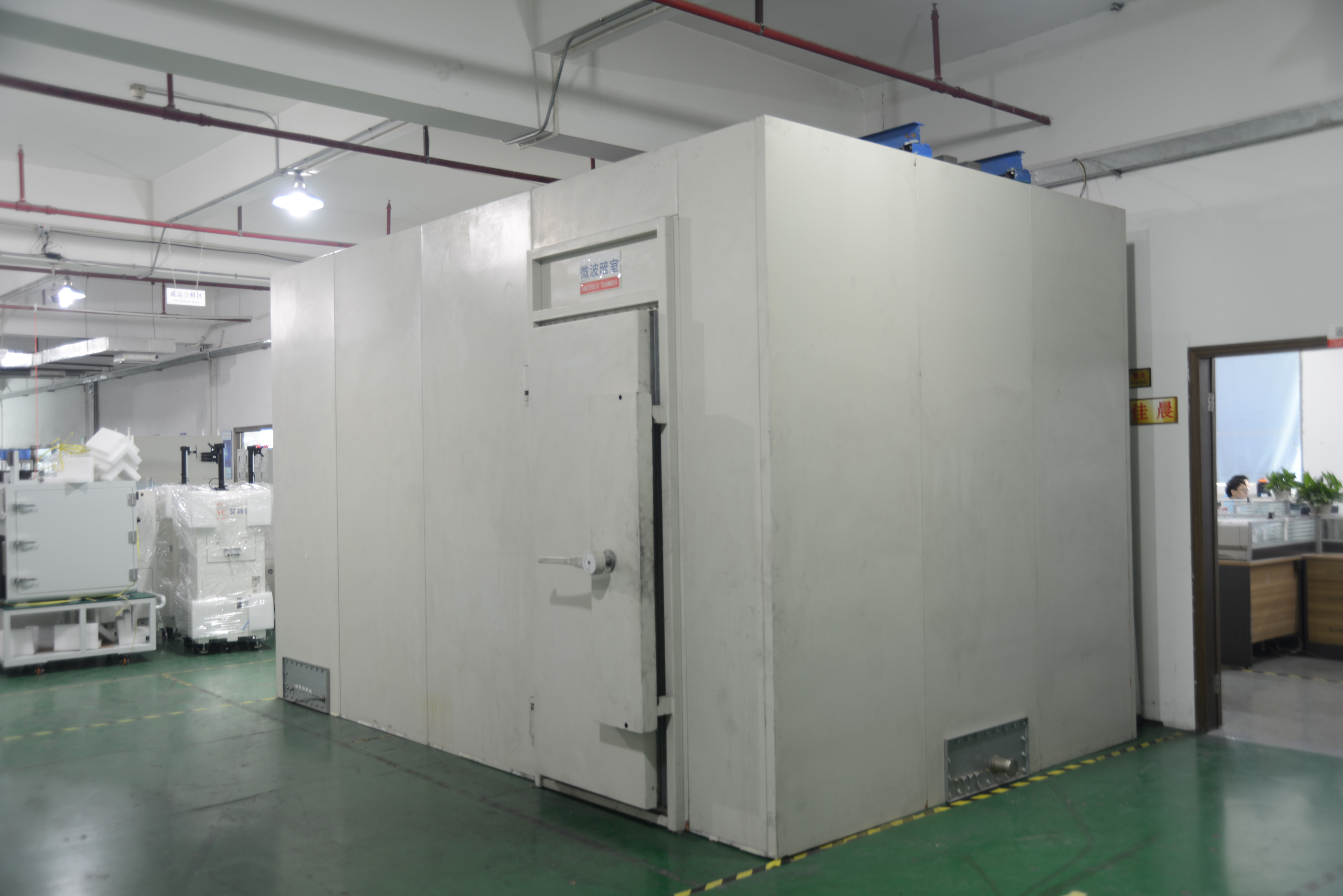

Pf0008 microwave darkroom / shielding room / appearance diagram
