Pl3151 drawer type manual shielding box

Jc-pl3151 drawer type manual shielding box

Drawer type shielding box is a kind of shielding body with various shapes made of conductive or magnetic conducting materials, which limits the electromagnetic capacity within a certain space range and is used to suppress radiation interference. It also deals with the conduction and radiation, so as to provide a non-interference test environment for the tested wireless communication equipment.

Main functions and application scope of jc-pl3151 drawer type manual shielding box

Wireless communication test

EMI test, EMS test

Coupling test (coupling antenna is equipped separately)

RF function test

Jc-pl3151 drawer manual shielding box performance index parameters

Shielding box material: aluminum plate welding (5mm cotton)

Communication port: RS232

Appearance color: beige

Working stroke: 190mm

Working frequency: 0.8ghz-3ghz

Shielding effect: 0.8ghz-3ghz ≥ 60dB

Working dimension: (L) 190x (W) 257x (H) 80mm ± 5mm

Box size: (L) 360x (W) 320x (H) 257mm ± 5mm

Appearance dimension: (L) 405x (W) 355x (H) 350mm ± 5mm

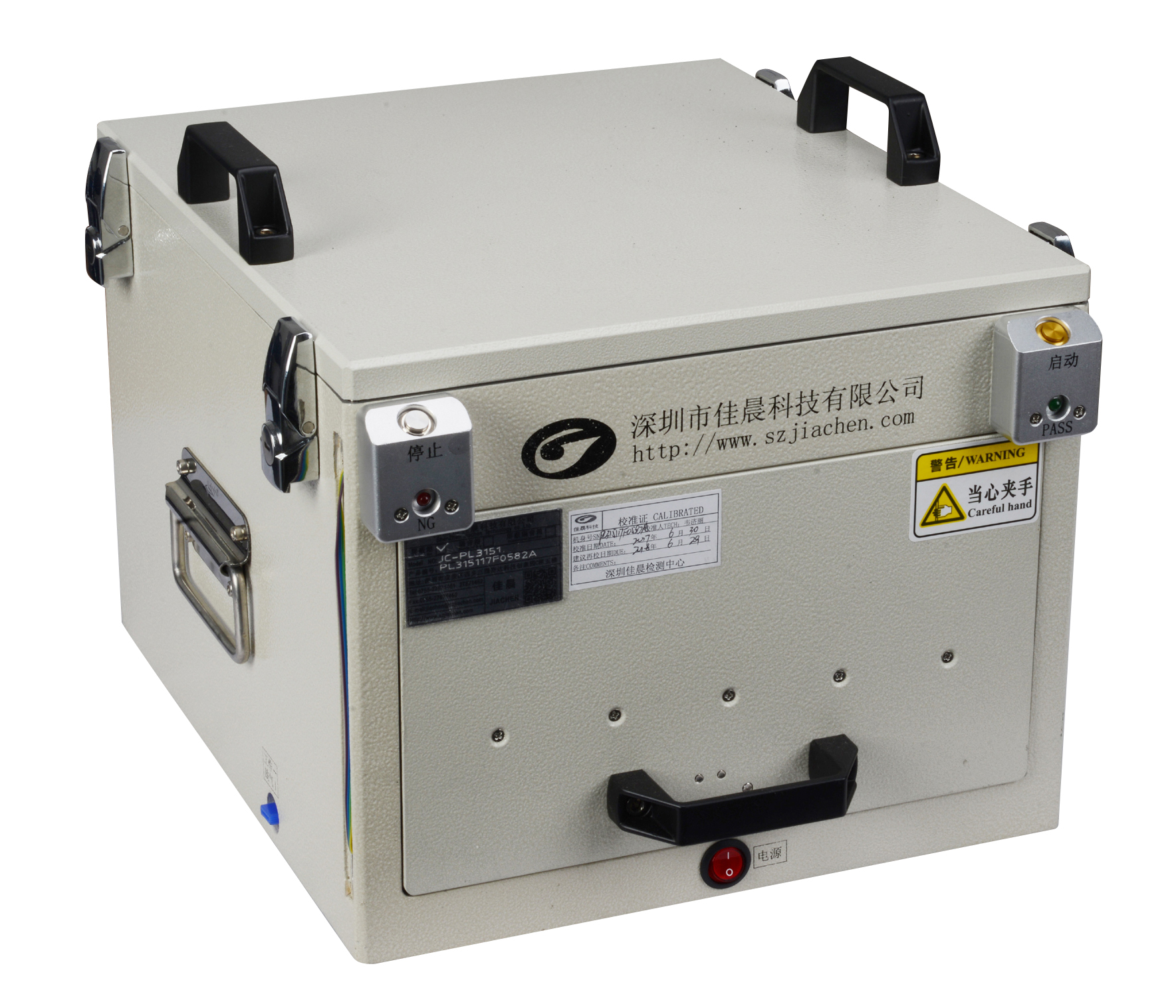

Pl3151 drawer type manual shielding box appearance picture size
