Jc-ant1080 small horn test antenna

1、 Jc-ant1080 small horn test antenna product introduction:

Small horn antenna is a broadband antenna, covering 1ghz-8ghz, with stable standing wave, standing wave ratio less than 2.5, small size and excellent workmanship, which can be applied to mobile phone, Bluetooth, wireless network card, GPS, WiFi and wireless module test.

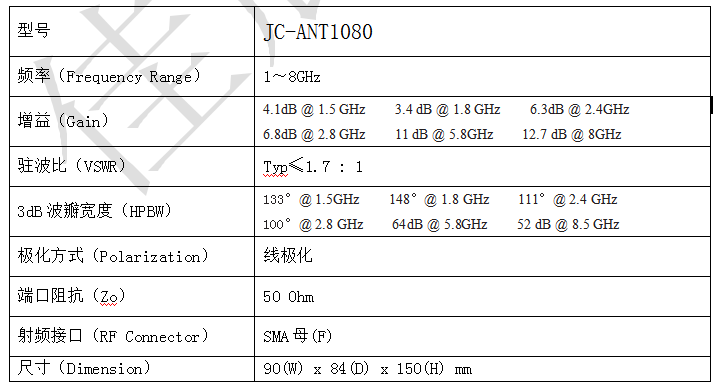

2、 Jc-ant1080 small horn test antenna specification

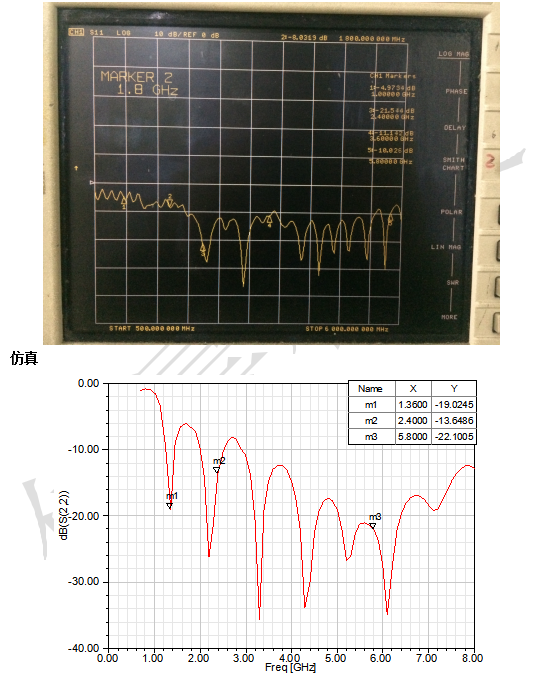

3、 Standing wave test (VSWR) results of jc-ant1080 small horn antenna
